Lightweight Aluminium Gantry

The original Lightweight aluminium gantry system – Reid Lifting Gantries brought to you by Concord Lifting Equipment

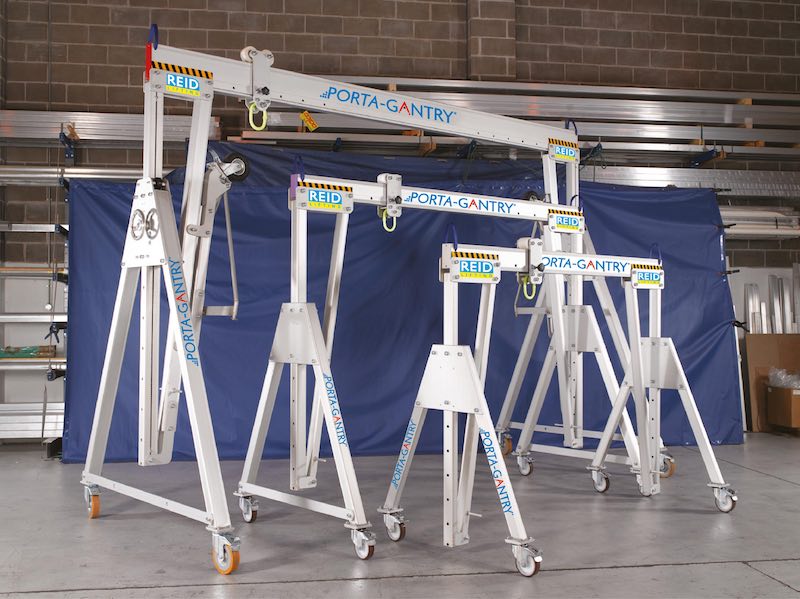

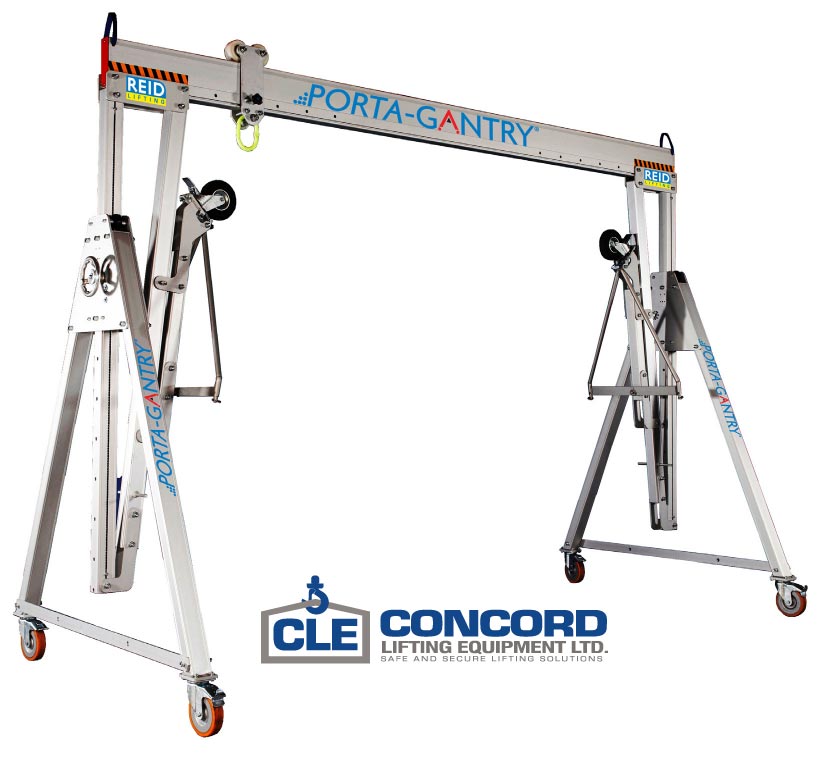

Lightweight Alumimium Gantry by Reid Lifting , portable and safe, the innovative and unique PORTA-GANTRY lifting system range is designed for easy transport, rapid assembly and safe use. Concord Lifting Equipment Ltd offers a range of configurations, lift-ratings and personnel lifting options, including the world’s first WLL 5000kg capacity portable gantry, available for hire of sale, delivery next or sometimes even same day.

Erect in minutes, a doddle to move around site and available in multiple different configurations, below are some of the key features of the lightweight aluminium gantry products available from Concord:

  • Lightweight, Portable & Safe
  • Over 10 years’ experience and innovation with registered patents
  • Custom aluminium extrusions to optimise strength:weight & ergonomics for safe handling
  • Ultra-safe captive trolley
  • Queens Award for Enterprise:Innovation winner
  • Widest range of test data in the industry
  • Shock load as well as static load Witnessed Tested at UKAS accredited laboratories
  • Unique, extensive range to WLL5000kg
  • Range of Height of Lift options to 5.8m
  • Beam lengths to 9000mm (subject to WLL) – with jointed options for ease of transport
  • Simple height & span adjustment
  • Interchangeable components (within WLL limit) for optimised utilisation & RoI
  • Wide range of encapsulated trolley systems to assist with confined space challenges and load movement.
  • European supply chain
  • Marine Spec and Clean room/Food Processing upgrades
  • Unique easy, fast & safe assembly method– within manual handling guidelines
  • Assembled on just 4 bolts
  • Mechanical assembly aids for larger systems
  • Option for further assembly advantage & safe handling
  • Systems fold down on a few bolts for flat pack stowage and easy transport
  • Goods & Personnel configurations
  • Min 3 Person Fall Protection or Personnel Positioning
  • Rigid, bolted structure design with lateral beam and leg bracing – no structural welds
  • Fully anodised as standard
  • Corrosion resistant
  • Clean to handle and easy to wash down
  • Suitable for clean environments
  • Load bearing, 360° swivel, lockable castor wheels as standard
  • Easy positioning
  • Movement under load – with RAMS
  • Full Assembly, Operation & Maintenance Manual with Training

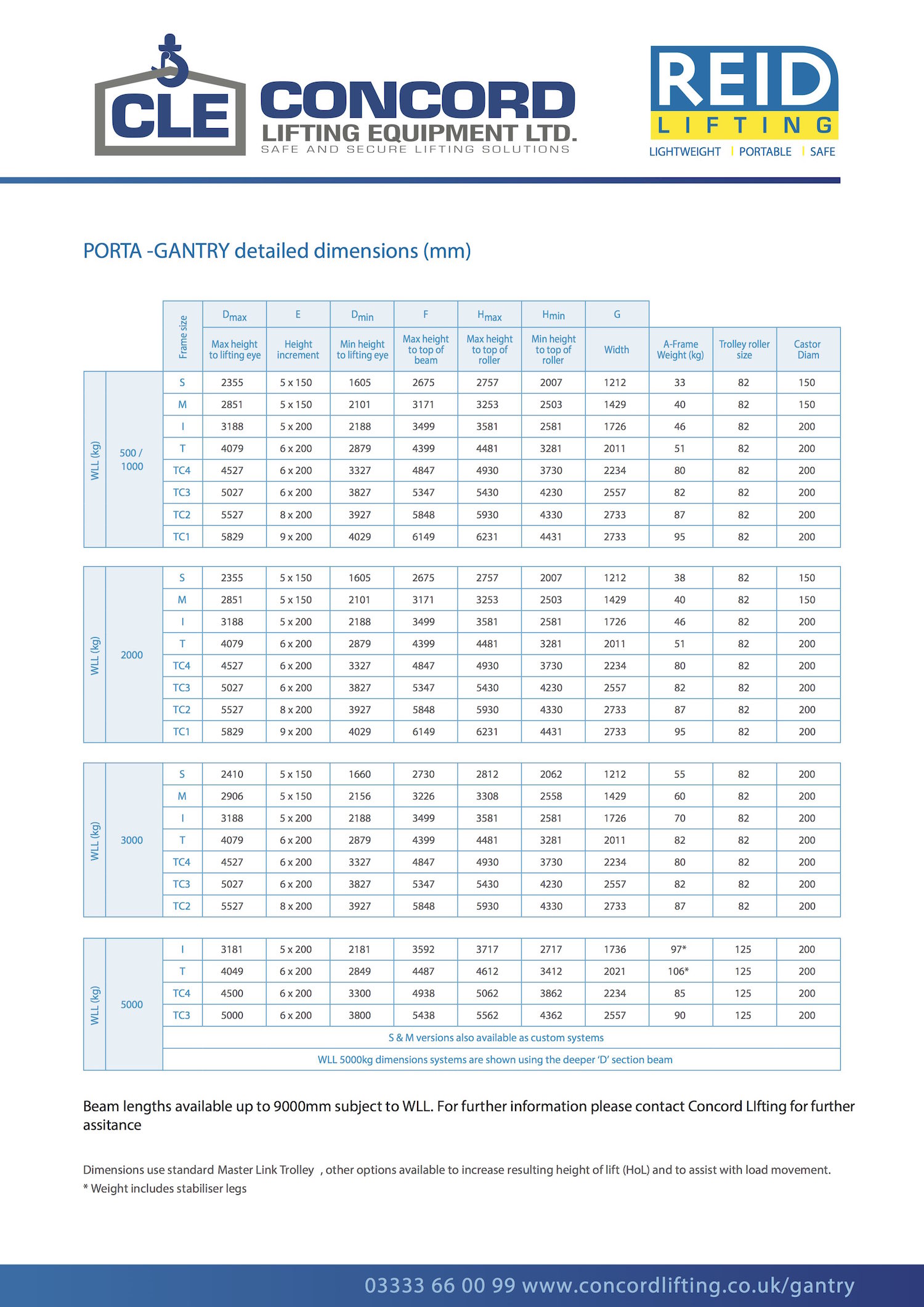

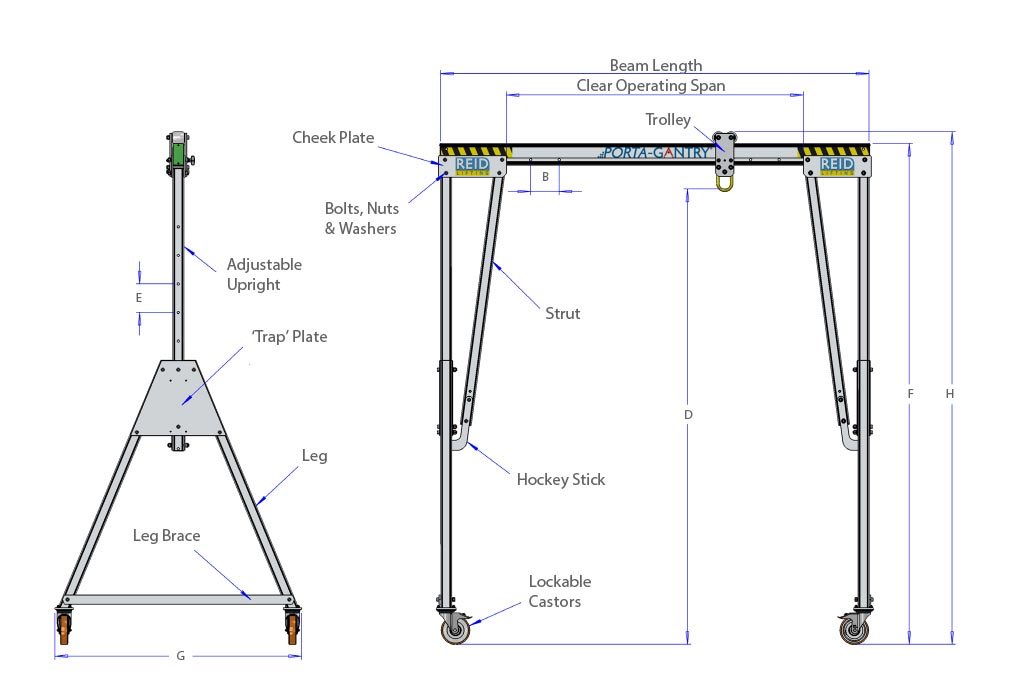

concord gantry dimensions

concord gantry dimensions


Frame size
Dmax
E
Dmin
F
Hmax
Hmin
G

Max height to lifting eye Height increment Min height to lifting eye Max height to top of beam Max height to top of roller Min height to top of roller Width A-Frame Weight (kg) Trolley roller size Castor Diam
WLL (kg)
500 /
1000
S 2355 5 x 150 1605 2675 2757 2007 1212 33 82 150
M 2851 5 x 150 2101 3171 3253 2503 1429 40 82 150
I 3188 5 x 200 2188 3499 3581 2581 1726 46 82 200
T 4079 6 x 200 2879 4399 4481 3281 2011 51 82 200
TC4 4527 6 x 200 3327 4847 4930 3730 2234 80 82 200
TC3 5027 6 x 200 3827 5347 5430 4230 2557 82 82 200
TC2 5527 8 x 200 3927 5848 5930 4330 2733 87 82 200
TC1 5829 9 x 200 4029 6149 6231 4431 2733 95 82 200

WLL (kg)
2000
S 2355 5 x 150 1605 2675 2757 2007 1212 38 82 150
M 2851 5 x 150 2101 3171 3253 2503 1429 40 82 150
I 3188 5 x 200 2188 3499 3581 2581 1726 46 82 200
T 4079 6 x 200 2879 4399 4481 3281 2011 51 82 200
TC4 4527 6 x 200 3327 4847 4930 3730 2234 80 82 200
TC3 5027 6 x 200 3827 5347 5430 4230 2557 82 82 200
TC2 5527 8 x 200 3927 5848 5930 4330 2733 87 82 200
TC1 5829 9 x 200 4029 6149 6231 4431 2733 95 82 200

WLL (kg)
3000
S 2410 5 x 150 1660 2730 2812 2062 1212 55 82 200
M 2906 5 x 150 2156 3226 3308 2558 1429 60 82 200
I 3188 5 x 200 2188 3499 3581 2581 1726 70 82 200
T 4079 6 x 200 2879 4399 4481 3281 2011 82 82 200
TC4 4527 6 x 200 3327 4847 4930 3730 2234 80 82 200
TC3 5027 6 x 200 3827 5347 5430 4230 2557 82 82 200
TC2 5527 8 x 200 3927 5848 5930 4330 2733 87 82 200

WLL (kg)
5000
I 3181 5 x 200 2181 3592 3717 2717 1736 97* 125 200
T 4049 6 x 200 2849 4487 4612 3412 2021 106* 125 200
TC4 4500 6 x 200 3300 4938 5062 3862 2234 85 125 200
TC3 5000 6 x 200 3800 5438 5562 4362 2557 90 125 200
S & M versions also available as custom systems
WLL 5000kg dimensions systems are shown using the deeper ‘D’ section beam

To see the manufacturers website for more details of alloy gantries available from Concord Lifting click here

http://www.reidlifting.com/products/porta-gantry/

  • Download PDF FileManual & Operating Instructions 5000kgs
  • Download PDF FileManual & Operating Instructions 500kg to 3000kg
