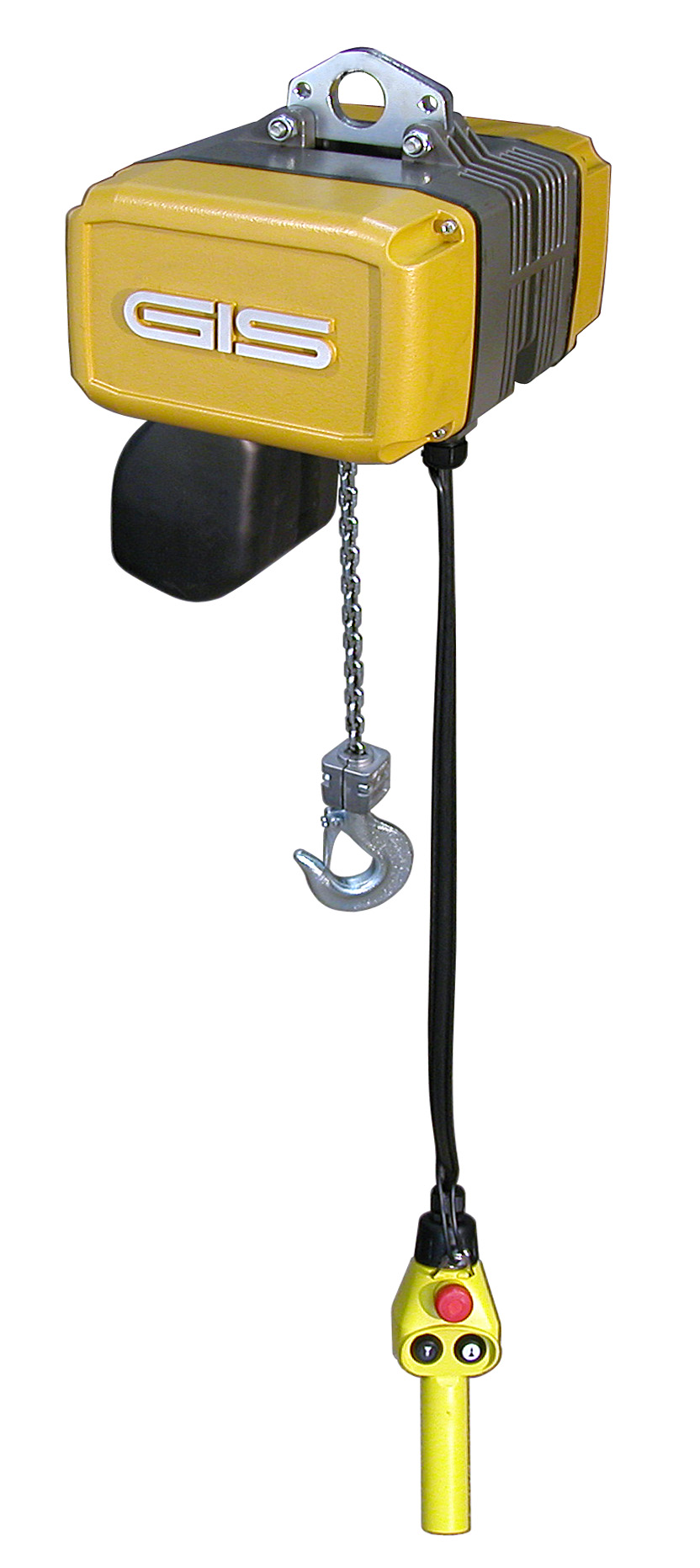

GIS 440-Volt 3ph Electric Chain Hoist

GIS Electric Chain Hoist, 440-Volt 3ph Electric Chain Hoist

A further evolution in chain hoist development from GIS, the GIS 440-Volt 3ph Electric Chain Hoist is one of our most popular hire items .

GIS are specialists in chain hoist manufacture since 1963. The GIS manufacturing facility in Switzerland contains some of the most modern machining centres and the hoist embodies the latest manufacturing techniques and technology

Take the hard work out of lifting and lowering loads through vertical distances.

  • Runs off 400/440v,3ph supply
  • Lift heights from 6M to 30M
  • Dual speed an option on power trolley
  • 500kgs to 5T
  • Travel trolley has power speed of 12M/min
Housing
  • Cast aluminium housing with maximum solidity (no plastic material)
  • For extreme working conditions: casted cooling gills
Motor
  • Design for tough working conditions
  • Normal, fast and super fast speed models available
Transmission
  • Helical-toothed first and second gear step for quiet running
  • Permanent lubrication for wear resistant operation
Brake
  • Maximum safety (construction: brake after slipping clutch)
  • New advanced brake design
Slipping clutch
  • Simple and precise adjustment
  • Maintenance free and highly resistant to wear
Chain guidance
  • 2-part construction to optimize maintenance
  • Reinforced plastic material highly wear resistant
Chain wheel
  • Made of hardened steel
  • With additional chain pockets (4 mm): hence quiet running
Hoisting chain
  • Zinc plated
  • Surface-hardened
Geared limit switch (standard)
  • Simple adjustment
  • Exact positioning
Contactor control system
  • Simple technology (no electronics susceptible to interference)
  • 42 V control system allowing highest safety of operation
Control switch
  • With built-in support wire as a standard
  • 2-buttons: design especially ergonomic



440-Volt 3ph Electric Chain Hoist
Technical Specification
H.O.L (M)
500kgs 1T 2T 3T 5T
6 M
9M/min 8M/min 4M/min 2.9M/min 2.9M/min
9 M
9M/min 8M/min 4M/min 2.9M/min 2.9M/min
12 M
9M/min 8M/min 4M/min 2.9M/min 2.9M/min
15 M
9M/min 8M/min 4M/min 2.9M/min 2.9M/min
18 M
9M/min 8M/min 4M/min 2.9M/min 2.9M/min
24 M
9M/min 8M/min 4M/min 2.9M/min N/A
30 M
9M/min 8M/min 4M/min 2.9M/min N/A
Extra-Power travel trolley

For more information on the GIS Electric Chain Hoist, click here to view the manufacturers website

  • Download PDF FileElectric Chain Hoist operating instructions
