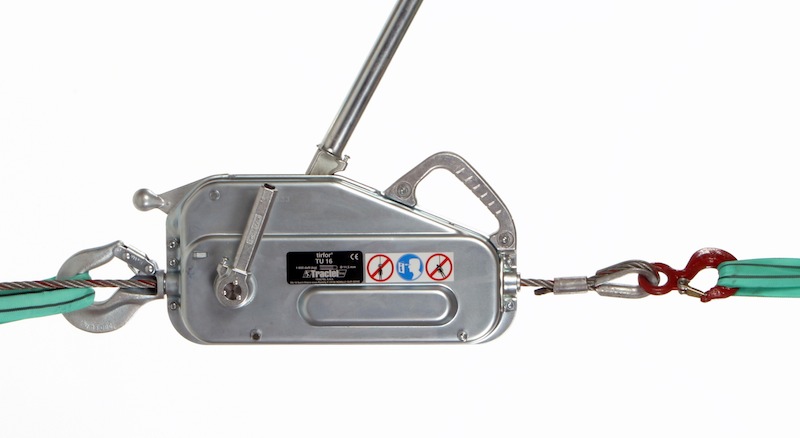

Manual Tirfor Winch

Manual Tirfor Winch

The world-renowned Tirfor winch from Concord available in three major sizes 800kg, 1600kg and 3200kg has unlimited rope length and can be hand or power operated.  Choose from heavy-duty TU range, the medium duty T5 range or the lightweight jockey series for 300kg or 500kg capacities.

  • 60m & 100m ropes supplied on cable reel
  • Heavier loads can be handled when used in combination with Snatch Blocks

The Griphoist® is a portable manual hoist with traversing wire rope. They can lift, pull and place loads across great distances without exceeding their maximum working load limit. These lever operated wire rope hoists are suitable for use in numerous applications and are the ideal solution for professionals. An outstanding option of the Griphoist® hoist is that load capacity of the device can be increased with a sheave block.

These hoists are portable, strong and can be used in any orientation. The design of these hoists allow for a virtual unlimited lift or pull, the limit of which is determined only by the length of wire rope inserted into it.

  • Light weight for quick installation
  • No limitation in terms of wire rope length
  • Easy to use, heavy duty, and powerful
  • Increase load capacity with deflection sheaves
  • Overload protection

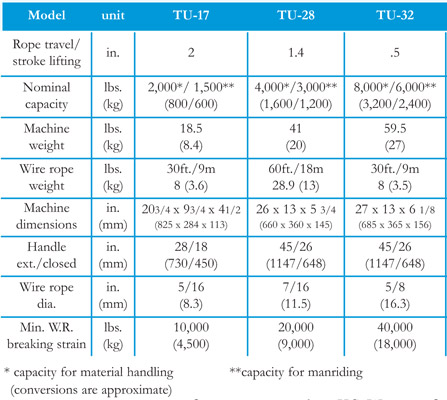

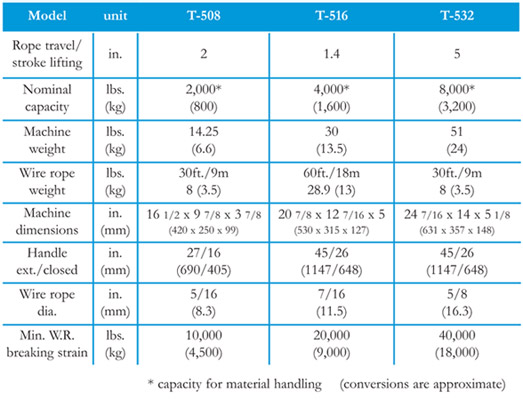

Specification of Tirfor T5 & TU Range

  • Download PDF FileTirfir.pdf
