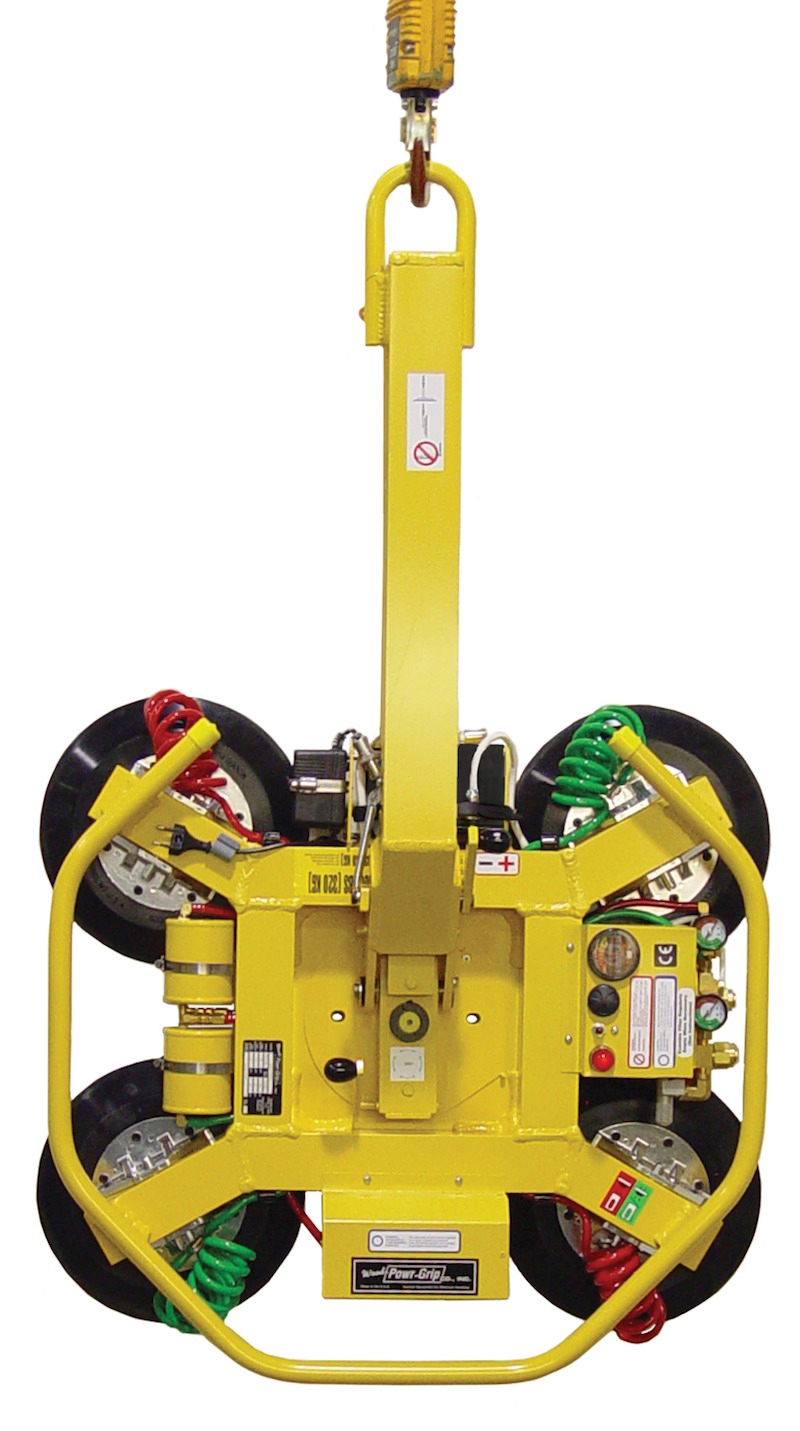

Vacuum Handler MRT4 C

Woods Powr-Grip MRT4 C

This the third frame configuration, 90° tilt and continuous 360° rotation, these Powr-Grip® vacuum lifters deliver maximum versatility and range of motion in the shop or at the construction site

Standard Vacuum Pad Spread:
  • MRT411LDC   28-1/4″ x 32-3/4″ [717 x 834 mm] (basic configuration)
  • 48-1/4″ x 67-1/2″ [1227 x 1716 mm] (extended configuration)
  • 78-1/4″ x 15-3/4″ [1988 x 402 mm] (linear configuration)
  • MRT49DC   subtract 2-3/4″ [73 mm] from each dimension listed above
  • MRT4HV11DC   subtract 1″ [25 mm] from each dimension listed above
Number / Size of Vacuum Pads:
  • MRT411LDC – 4 / 11″ [28 cm] dia. lipped vacuum pads
  • MRT49DC – 4 / 9″ [23 cm] diameter vacuum pads
  • MRT4HV11DC – 4 / 10″ [25 cm] dia. lipped vacuum pads
Load Capacity*:
  • MRT411LDC – 700 lbs [320 kg]
  • MRT49DC – 500 lbs [225 kg]
  • MRT4HV11DC – 600 lbs [270 kg]

(*On smooth, nonporous surfaces)

Average Weight of Vacuum Lifter:122 lbs [56 kg]

Standard Operating Power:12 volts DC, 10 amps

Load Movement:Manual rotation, 360° edgewise, with locking at each quarter point.  Manual tilt, 90° between upright and flat, with automatic latching in upright position

Standard Features:

  • Low vacuum warning light
  • On-board battery and charger
  • Battery energy gauge
  • Vacuum gauge
  • Vacuum line filter
  • Vacuum reserve tank
  • Spring-mounted vacuum pads
  • Movable vacuum pad mounts
  • Vacuum pad extension arms.
