Genie AWP Hire From Concord Lifting Equipment AWP-20S, AWP-25S & AWP-30S added to Concord Lifting Equipment Hire Fleet

Genie AWP Hire from Concord Lifting Equipment! We are pleased to announce we are adding a range of Genie AWP Super Series work platforms to our hire fleet.  The battery operated access platforms come in 3 different sizes and will be available to hire across all 3 depots.

Genie® AWP™ Super Series aerial work platforms are an industry favourite due to their ease of use, convenience and flexibility. Their lightweight manoeuvrability and durable design make them a versatile option for a wide variety of rental, light-duty construction and maintenance applications.

  • Choose from two bases (standard or rough terrain) and four platform options
  • User-friendly ground and platform controls with auxiliary platform lowering
  • A tilt-back frame allows the AWP-36 and AWP-40 to roll through doorways
  • Quick set-up and simple to operate
  • Durable patented Genie® mast system
  • Easy to manoeuvre around and over obstacles with the Rocker Base System
  • Small outrigger footprint for positioning close to walls
  • Easy loading and transport in pickup trucks
  • Super-Straddle option to work over fixed seating



Standard AWP Hire/Rental Price

2 day price
Weekend Price
Weekly Rate
Genie AWP-20S
£185 £195 £299
Genie AWP-25S
£189 £199 £305
Genie AWP-30S
£195 £205 £329

Introductory Special Weekly Hire/Rental Price

2 day price
Weekend Price
Weekly Rate
Genie AWP-20S
£134 £144 £194
Genie AWP-25S
£139 £149 £199
Genie AWP-30S
£144 £154 £209



Get an addition 5% off standard hire/sale price of any equipment you hire or buy from us at the same time as hiring an AWP from us

Prices are excluding VAT, and collection from our depot, (delivery/collection costs extra)

Introductory offer subject to Concord Lifting Equipment Ltd. standard terms and condition, introductory pricing expires 15th July 2016

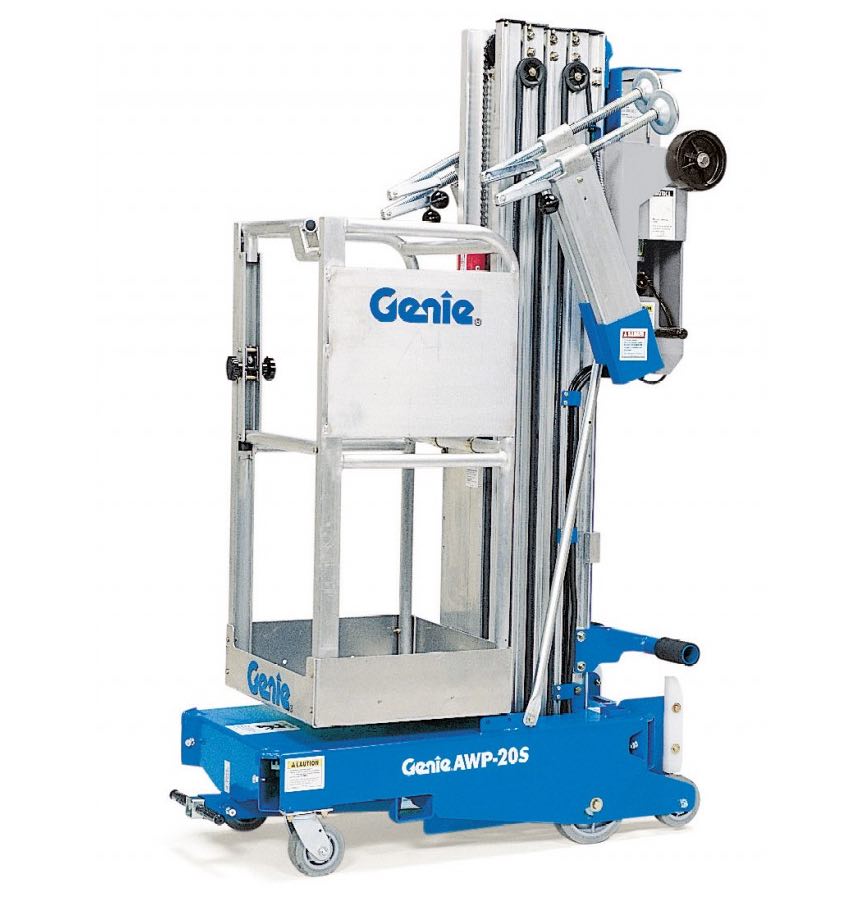

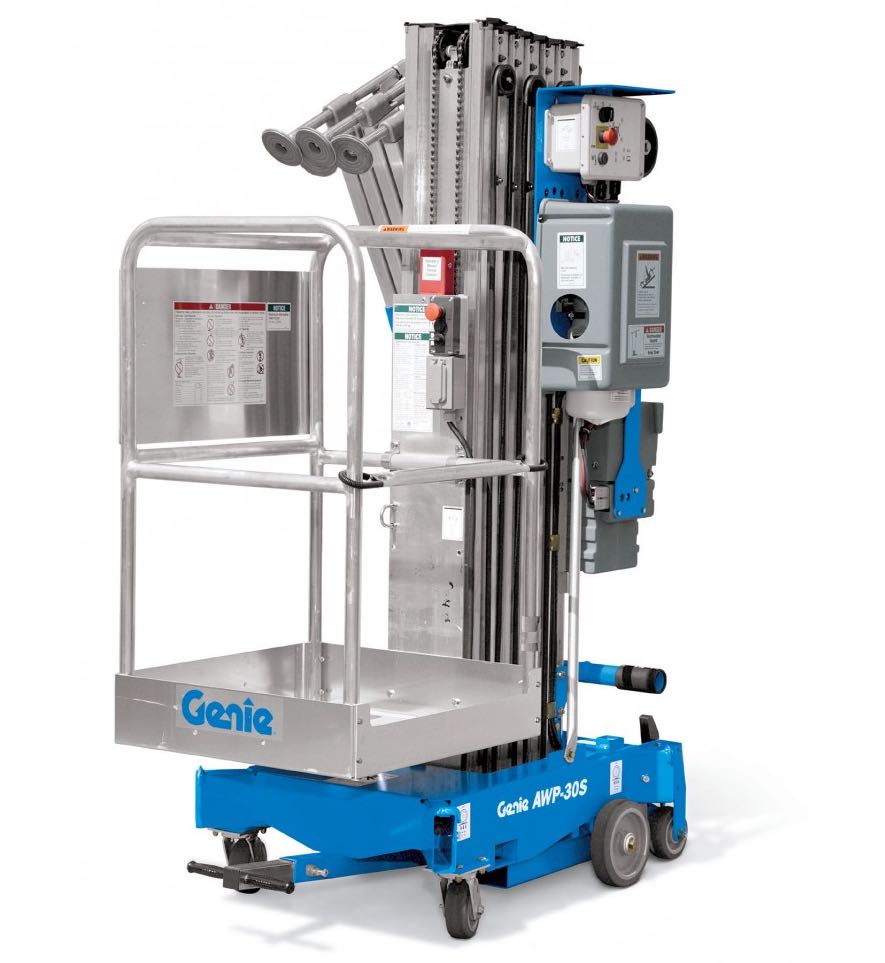

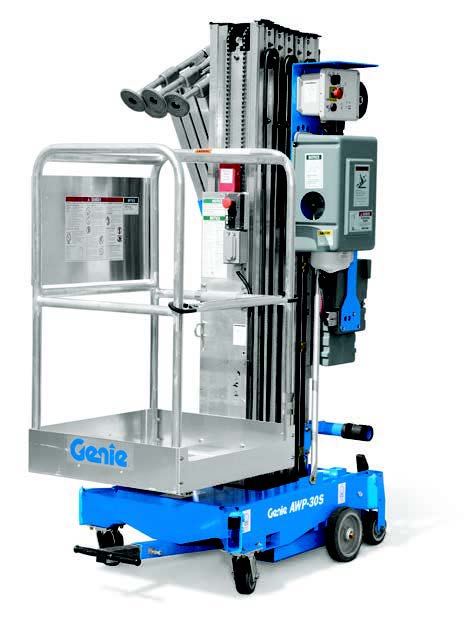

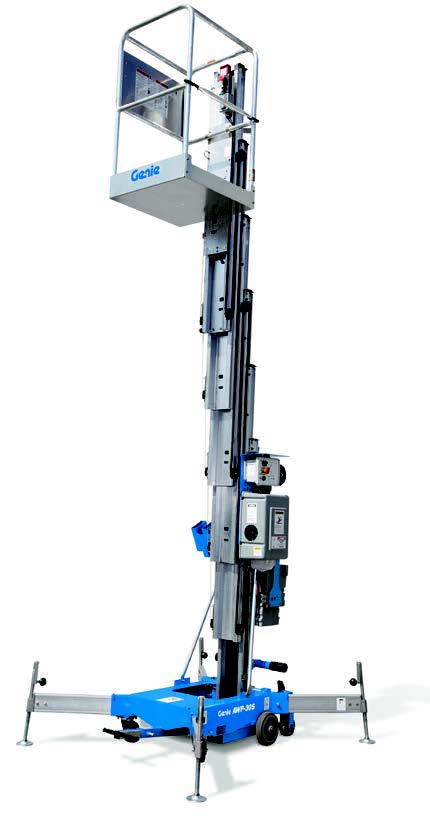

Genie AWP Super Series AWP-20S, AWP-25S & AWP-30S
Genie AWP Super Series AWP-20S, AWP-25S & AWP-30S-Genie® AWP™ Super Series aerial work platforms.
Genie Superlift Contractor
Genie Superlift Contractor from Concord is easily operated by one person. The Superlift is quick to set up on site and requires no extra tools. Always available from Concord Lifting Equipment depots.
Genie Superlift Advantage
Manually operated material lift with heavy-duty design and patented telescoping mast system. Easy to load and unload on or off a vehicle for transport. Quick set up requiring no tools.
Genie Super Hoist
The lightweight, Genie Super Lift portable material lift powered by CO2 or compressed air is available for hire or sale in two models from Concord.
Genie Material Lifts
Hire or buy Genie Material Lifts for construction and industrial applications from Concord Lifting Equipment Ltd.



Concord AWP Dimensions Drawings CLE web 1

Models

AWP-20S



AWP-25S



AWP-30S

Measurements
US
Metric
US
Metric
US
Metric
Working height*
26 ft 1 in 8.10m 30 ft 10 in 9.4m 35 ft 6 in 10.8m
Platform height
20 ft 1 in 6.12m 24 ft 11 in 7.60m 29 ft 6 in 9.00m
A   Height – stowed (Standard)
6 ft 6 in 1.98m 6 ft 6 in 1.98m 6 ft 6 in 1.98m
Stowed (RT/Narrow)
6 ft 7 in 2.01m 6 ft 7 in 2.01m 6 ft 7 in 2.01m
B   tilted back** (Standard)
–––––– –––––– –––––– –––––– –––––– ––––––
C   Length – stowed (Standard)
4 ft 1 in 1.24m 4 ft 3.5 in 1.31m 4 ft 5 in 1.35m
Stowed (RT/ Narrow)
5 ft 3 in 1.60m 5 ft 3 in 1.60m 5 ft 3 in 1.60m
D   Length – tilted back**
–––––– –––––– –––––– –––––– –––––– ––––––
E   Width (Standard)
2 ft 5 in 0.74m 2 ft 5 in 0.74m 2 ft 5 in 0.74m
Width (RT)
2 ft 6 in 0.76m 2 ft 6 in 0.76m 2 ft 6 in 0.76m
Width (Narrow)
1 ft 10 in 0.56m 1 ft 10 in 0.56m 1 ft 10 in 0.56m
Productivity
Lift capacity
350 lbs 159kg 350 lbs 159kg 350 lbs 159kg
ANSI/CSA:
F    G    Outrigger footprint (l/w) (Standard)
5 ft 1 in/4 ft 5 in 1.55/1.35m 5 ft 1 in/4 ft 5 in 1.55/1.35m 5 ft 9 in/5 ft 1 in 1.75/1.55m
Outrigger footprint (l/w) (RT/Narrow)
5 ft 4 in/4 ft 2 in 1.63/1.27m 5 ft 4 in/4 ft 2 in 1.63/1.27m 6 ft/5 ft 1.83/1.52m
H    Corner access*** (Standard)
1 ft 3 in 0.38m 1 ft 2 in 0.36m 1 ft 7 in 0.48m
Corner access*** (RT/Narrow)
1 ft 2 in 0.36m 1 ft 1 in 0.33m 1 ft 7 in 0.48m
I     J    Wall access front/side (Standard)
6 in/1 ft 1 in 0.15/0.33m 3 in/1 ft 1 in 0.08/0.33m 5 in/1 ft 5 in 0.13/0.43m
Wall access front/side (RT/Narrow) 9 in/1 ft 0.23/0.30m 6 in/1 ft 0.15/0.30m 7 in/1 ft 5 in 0.18/0.43m
CE/AUS/PB Indoor:
F    G    Outrigger footprint (l/w) (Standard)
1.55/1.35m 5 ft 9 in/5 ft 1 in 1.75/1.55m 6 ft 4 in/5 ft 8 in 1.93/1.73m
Outrigger footprint (l/w) (RT/Narrow)
1.80/1.47m 5 ft 11 in/4 ft 10 in 1.80/1.47m 6 ft 11 in/6 ft 2 in 2.11/1.88m
H    Corner access*** (Standard)
0.38m 1 ft 7 in 0.48m 1 ft 10 in 0.56m
Corner access*** (RT/Narrow)
0.53m 1 ft 8 in 0.51m 2 ft 3.5 in 0.70m
I     J    Wall access front/side (Standard)
0.15/0.33m 7 in/1 ft 5 in 0.18/0.43m 8 in/1 ft 9 in 0.20/0.53m
Wall access front/side (RT/Narrow)
0.30/0.43 m 10 in/1 ft 5 in 0.25/0.43m 9 in/1 ft 8 in 0.23/0.51m
CE/AUS/PB Outdoor:
F
G    Outrigger footprint (l/w) (Standard)   8 ft 1 in/7 ft 5 in
2.46/2.26m 9 ft 9 in/9 ft 2 in 2.97/2.79m 9 ft 9 in/9 ft 2 in 2.97/2.79m
Outrigger footprint (l/w) (RT/Narrow) 9 ft 4 in/9 ft 4 in
2.84/2.84m 9 ft 4 in/9 ft 4 in 2.84/2.84m 10 ft 10 in/11 ft 4 in 3.30/3.45m
Corner access*** (Standard)            1 ft 7 in                   0.48m                        2 ft 6 in                      0.76m                        2 ft 3 in                      0.69m
H
Corner access*** (RT/Narrow)          4 ft 6 in                   1.37m                       4 ft 4 in                      1.32m                       5 ft 1 in                      1.55m
I     J    Wall access front/side (Standard)
Wall access front/side (RT/Narrow)
1 ft 7 in/2 ft 8 in
2 ft 8 in/3 ft 8 in
.48/.81 m
.81/1.12m
2 ft 5 in/3 ft 6 in
2 ft 5 in/3 ft 8 in
0.74/1.07m
0.74/1.12m
2 ft 3 in/3 ft 6 in
2 ft 11 in/4 ft 7 in
0.69/1.07m
0.89/1.40m
Platform Dimensions: (l/w/h) Standard
27/26/44.75 in 0.69/0.66/1.14m 27/26/44.75 in 0.69/0.66/1.14m 27/26/44.75 in 0.69/0.66/1.14m
Gated standard
27/26/44.75 in 0.69/0.66/1.14m 27/26/44.75 in 0.69/0.66/1.14m 27/26/44.75 in 0.69/0.66/1.14m
Gated narrow
26/20/44.75 in 0.66/0.51/1.14m 26/20/44.75 in 0.66/0.51/1.14m 26/20/44.75 in 0.66/0.51/1.14m
Gated ultra-narrow
22/18/44.75 in 0.56/0.46/1.14m 22/18/44.75 in 0.56/0.46/1.14m 22/18/44.75 in 0.56/0.46/1.14m
Standard fiberglass
29/26.5/43.5 in 0.74/0.67/1.10 m 29/26.5/43.5 in 0.74/0.67/1.10m 29/26.5/43.5 in 0.74/0.67/1.10m
Power
Power source – DC models
12V DC 110/50-60 Hz or 220/50-60 Hz AC 12V DC 110/50-60 Hz or 220/50-60 Hz AC 12V DC 110/50-60 Hz or 220/50-60 Hz AC
Weight
AC models (Standard)
677 lbs 307kg 727 lbs 330kg 777 lbs 352kg
AC models (RT/Narrow)
660 lbs 299kg 694 lbs 315kg 729 lbs 330kg
DC models (Standard)
766 lbs 348kg 817 lbs 371kg 867 lbs 393kg
DC models (RT/Narrow)
749 lbs 339kg 780 lbs 355kg 818 lbs 370kg
Air motor (Standard)
——— ——— ——— ——— 777 lbs 352kg
Air motor (RT/Narrow)
——— ——— ——— ——— 729 lbs 331kg
Standards Compliance            ANSI A92.3, CSA B354.1, EN 280, AS 1418.10



Convenient, Versatile Access- Genie AWP Super Series aerial work platforms by Concord Lifting Equipment Ltd.

Genie® AWP™ Super Series aerial work platforms are an industry favourite due to their ease of use, convenience and flexibility. Their lightweight manoeuvrability and durable design make them a versatile option for a wide variety of rental, light-duty construction and maintenance applications.

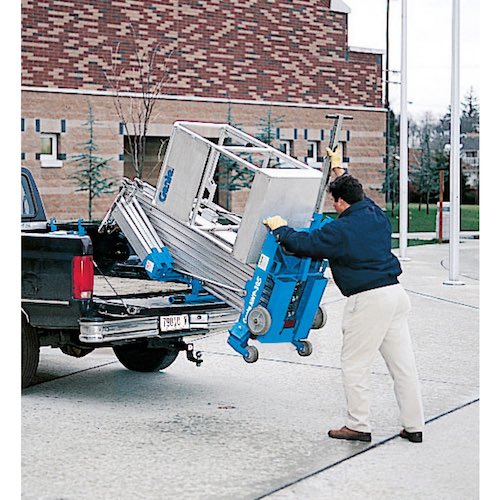

Easy Transport

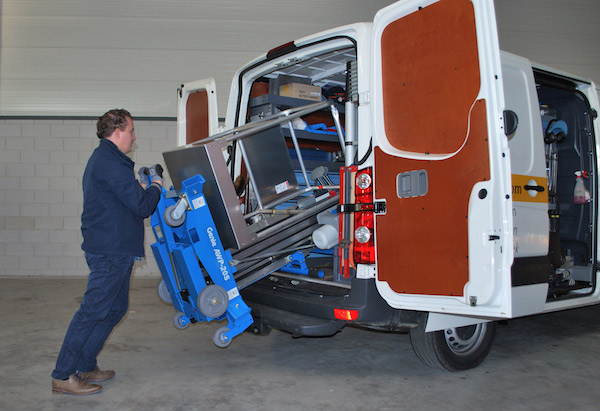

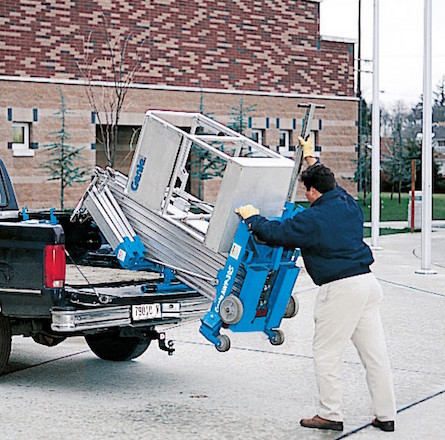

The unique rear mast pivot bar and lightweight design allow it to be easily loaded into a pickup truck. Outrigger storage and forklift pockets, tie-down attachment points and an overhead crane attachment point add transportation  convenience.

Durable Mast and Platform

The patented Genie® mast system is the most rigid in the industry. Constructed of durable aircraft-quality aluminium, the mast provides user comfort and security at all working heights. Units have a ground fault interrupter receptacle on the platform for convenient use of power tools. (ANSI/CSA only)

Doorway Access and Maneuverability

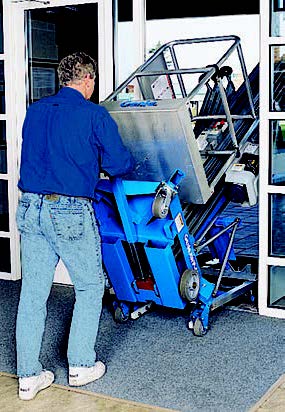

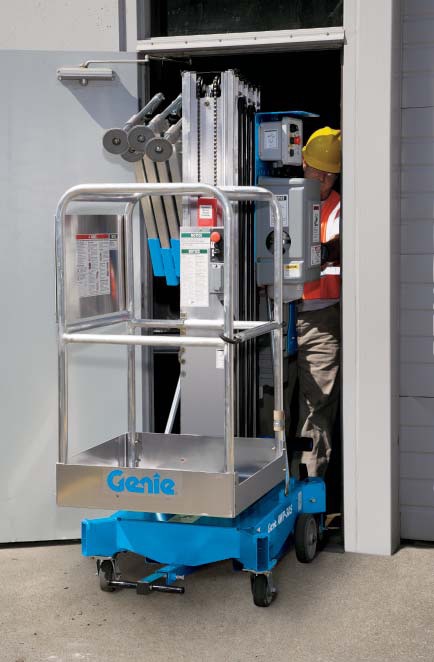

All units roll through standard doorways for easy access, and models up to 30 ft (9.1 m) don’t need to be tilted back. An exclusive six-point wheel and caster rocker base system also manoeuvres easily around corners and over thresholds or debris.

User-Friendly Controls

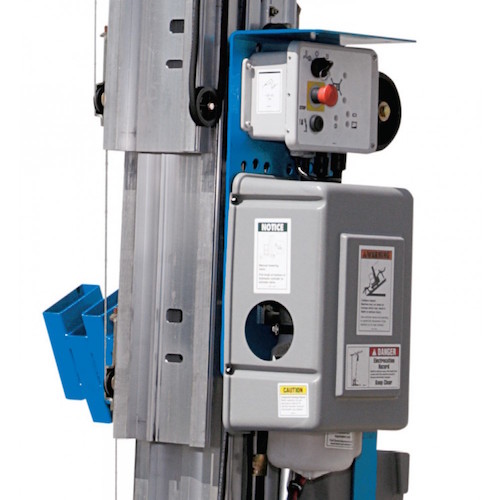

Controls include a low battery indicator, locking key switch and dual-activated up/down switch as well as outrigger setup confirmation lights. All AC and DC models are equipped with an auxiliary platform-lowering feature for descent in the event of a power failure.

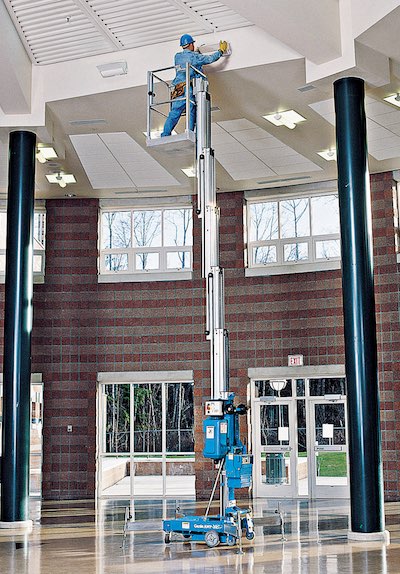

Close Access

The compact X-pattern outrigger footprint is the smallest in the industry, allowing access as close as 3 in (8 cm) from walls. With proximity like that, you’ll be within easy arm’s reach of your job. Simple setup and 6 to 46 ft 4 in (2 to 12.3 m) of working height make the AWP

Super Series lifts or platforms the ideal choice for applications requiring close access.
