Roust-A-Bout

Roust-A-Bout

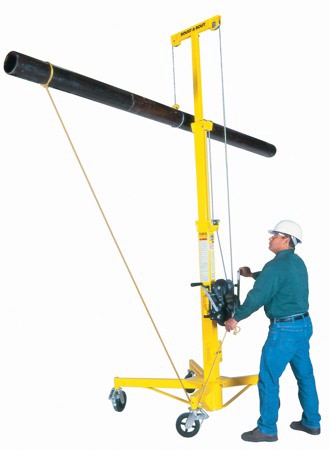

The Sumner Roust-A-Bout enables one man to lift and place loads in tight locations that would be impossible with other lifts. The flexible Roust-A-Bout not only makes the job possible . . . it can pay for itself in days by reducing job time!
This dependable lift can raise a 1,500 lb. (680 kg) load to heights up to 25 feet (7.6 m) in minutes. In addition, large 8″ (200 mm) casters permit a fully loaded Roust-A-Bout to position pipe or beams with ease.
Wider loads up to 1,000 lbs (455 kg) can be handled with the addition of Sumner’s Tee Head Extension Bar. The Roust-A-Bout eliminates the need for many other tools such as come alongs, scaffolds, monorails, and swing booms.

Features

  • Lifts 1,500 pounds (680 kg)
  • 15′, 18′ and 25′ heights (4.6 m, 5.5 m and 7.6 m)
  • Moves vertically and horizontally
  • 2 Winches: operate load and mast elevation separately
  • 4-speed load winches
  • Infinite load height adjustment
  • Ideal for job site or shop
  • Mast and base separate quickly for EASY transport
  • Available in a counter balenced model
Part No. Description Weight A B C/D Base Max Height
Lb Kg inch cm inch cm inch cm inch cm feet meters
780300 R-100 Roust-A-Bout 330 150 79 200 20 50 12 30 32 x 40 80 x 100 15′ 2-1/2″ 4.6
15′ Top Height
780301 R-150 Roust-A-Bout 336 152 79 200 20 50 12 30 40 x 40 100 x 100 15′ 2-1/2″ 4.6
15′ Top Height
780302 R-180 Roust-A-Bout 403 183 126 320 25 63 14.5 36 50 x 50 125 x 125 17′ 11-5/8″ 5.5
18′ Top Height
780303 R-250 Roust-A-Bout 493 224 119 302 30 75 17.5 44 60 x 60 150 x 150 25′ 3/8″ 7.6
25′ Top Height
Models Currently available for hire: R150 &R250



  • Download PDF FileOperating Instructions
